Product Description
SINOBAKE GROUP
Guangdong Shunde Huaji Industrial Co., Ltd. is a professional manufacturer of biscuits and cookies production line. We have been exporting our machines around the world to more than 100 countries. We operate the production in strict standards to provide reliable and safety products for customers all around the world.
We have employed professional technicians, employees who can provide an excellent service, and the right quality control equipment and personnel to do this job. The result of this being that we have passed the ISO9001: 2000 management system.
We invite you to discuss future opportunities with us, and to also take the opportunity yourself of putting to use our quality equipment.

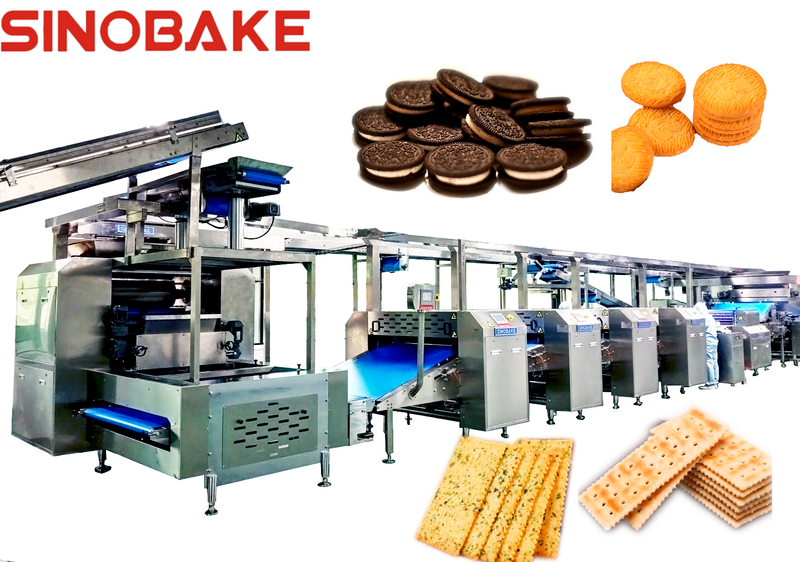

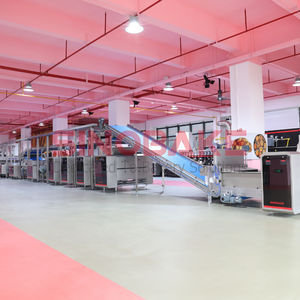

SINOBAKE High Quality Advanced Soft And Hard Biscuit Production Line
Soft Biscuit
Hard Biscuit

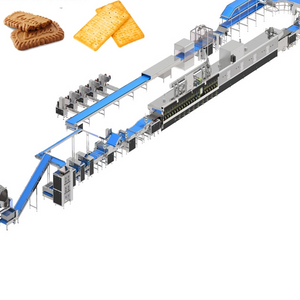

| The Complete Soft And Hard Biscuit production line consists of: | |
| 1. Dough Mixer | 2. Automatic Dough Tilting and Feeding System |
| 3. Three-roll sheeter for feeding and sheeting dough | 4. Laminator for overlapping dough to sheeting on gauge rolls, included flour spreading machine (Special for Soda cracker& Hello Panda biscuit) |
| 5. Guage Roll | 6. Rotary Cutter with Dough scrap return system for Hard Biscuit; Rotary moulder for Soft biscuit |
| 7. Tunnel Baking Oven | 8.Cooling Conveyor and Stacker |
Biscuit Processing:
Horizontal Dough Mixer (250KG/400KG/600KG/800KG for option)
| Horizontal single blade, Z shape,S shape | 304# Stainless steel outer cover and chromed sideboard |
| Motor and speed reducers : Europe brand | Bearing: Japan brand |
| Easy to control by PLC with touch screen | Control by PLC, |
Vertical Dough Mixer
| Double vertical paddles. Knife type. | Double chain driven |
| Motor by Europe brand and speed reducers by worm gear reducer from famous Chinese brand. | Bearing: Japan brand |
| 304# stainless steel cover | Control by PLC |

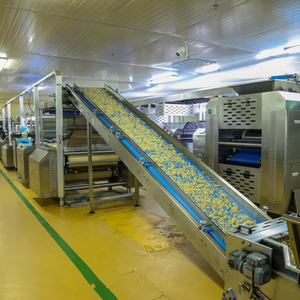

Tilting Machine and Feeding system
| Europe brand motor & speed reducer | Chromed sideboard |
| SUS304 cover | Bearing: Japan brand |
| 304# stainless steel cover | Control by PLC |
Laminator
| Number of lamination layers: 8-12 layers | Cut-off method: electric, the cut-off position is tracked by an electric eye |
| The side board is made of Q235 carbon steel, and the thickness after processing is 28mm | The surface is plated with hard chrome, the hardness is HRC58-62 |
| Europe brand for main motor and reducer | Control appliances mainly use French brands |
| Cylinder uses Korean famous brand | Bearing: Japan brand |
Three rolls sheeter
| The side plate is made of Q235 carbon steel material, and the thickness after processing is 28mm | The surface is plated with hard chrome, the surface hardness is HRC58-62 |
| The conveyor belt uses European imported PU belt with a thickness of 1.3mm | Cylinder is made of Korean famous brand |
| Europe brand for main motor and reducer | Control appliances mainly use French brands |
| Bearings uses Japan brand | The enclosure is made of 1.5mm304 stainless steel |
Gauge roll
| Surface is treated with special anti-rust and anti-sticking treatment, surface hardness: HRC58-62 | The side board is made of Q235 carbon steel, the thickness is 28mm after processing |
| The surface is plated with hard chrome, and the surface hardness is HRC58-62 | Europe brand for main motor and reducer |
| Cylinder is made of Korean famous brand | The enclosure is made of 1.5mm304 stainless steel |
| Control appliances mainly use French brand | Bearings use Japan brand |

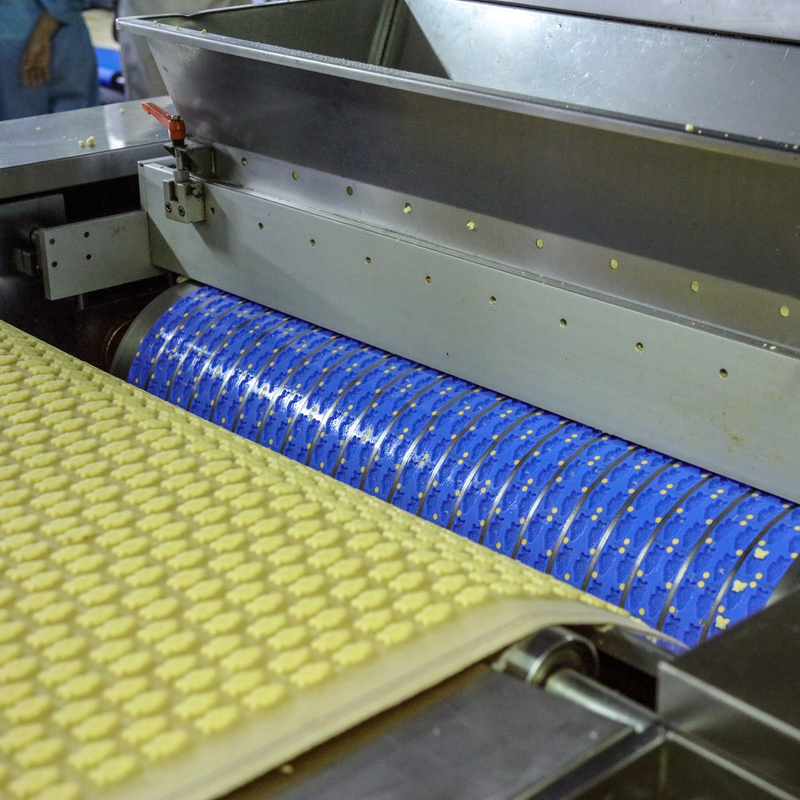

Rotary Cutter for Hard Biscuit
| The conveyor frame board uses Q235 carbon steel material, the thickness after processing is 15mm | The surface is plated with hard chrome, and the hardness is HRC58-62 |
| The pallet uses 304 stainless steel | Cylinder adopts Korean famous brand |
| The enclosure uses 1.5mm304 stainless steel material | Europe brand for main motor and reducer |
| Control appliances mainly use French brand | Bearings use Japan brand |
Rotary Moulder for Soft Biscuit
The side board is made of Q235 carbon steel, the thickness is 28mm after processing, the surface is plated with hard chrome, and the surface hardness is HRC58-62 | The conveyor frame board is made of Q235 carbon steel material, the thickness after processing is 15mm, the surface is plated with hard chrome, and the hardness is HRC58-62 |
The pallet uses 304 stainless steel | Cylinder adopts Korean famous brand |
| The enclosure uses 1.5mm304 stainless steel material | Europe brand for main motor and reducer |
| Control appliances mainly use French brand | Bearings use Japan brand |
Tunnel Oven
| Electric Oven | Gas Oven |
| Diesel Oven | Direct Oven |
| Indirect Oven | Hybrid Oven |
Cooling conveyor and Stacker
| Imported PU belt, thickness 1.3mm | The cylinder uses Korean famous brand |
| All stainless steel for conveying racks and pallets | Europe brand for motor and reducer |
| Control appliances mainly use French brand | Bearings use Japan brand |
| Adopt no sanitary dead angle structure design, safe and sanitary | Install safety protection devices such as emergency stop switches |
