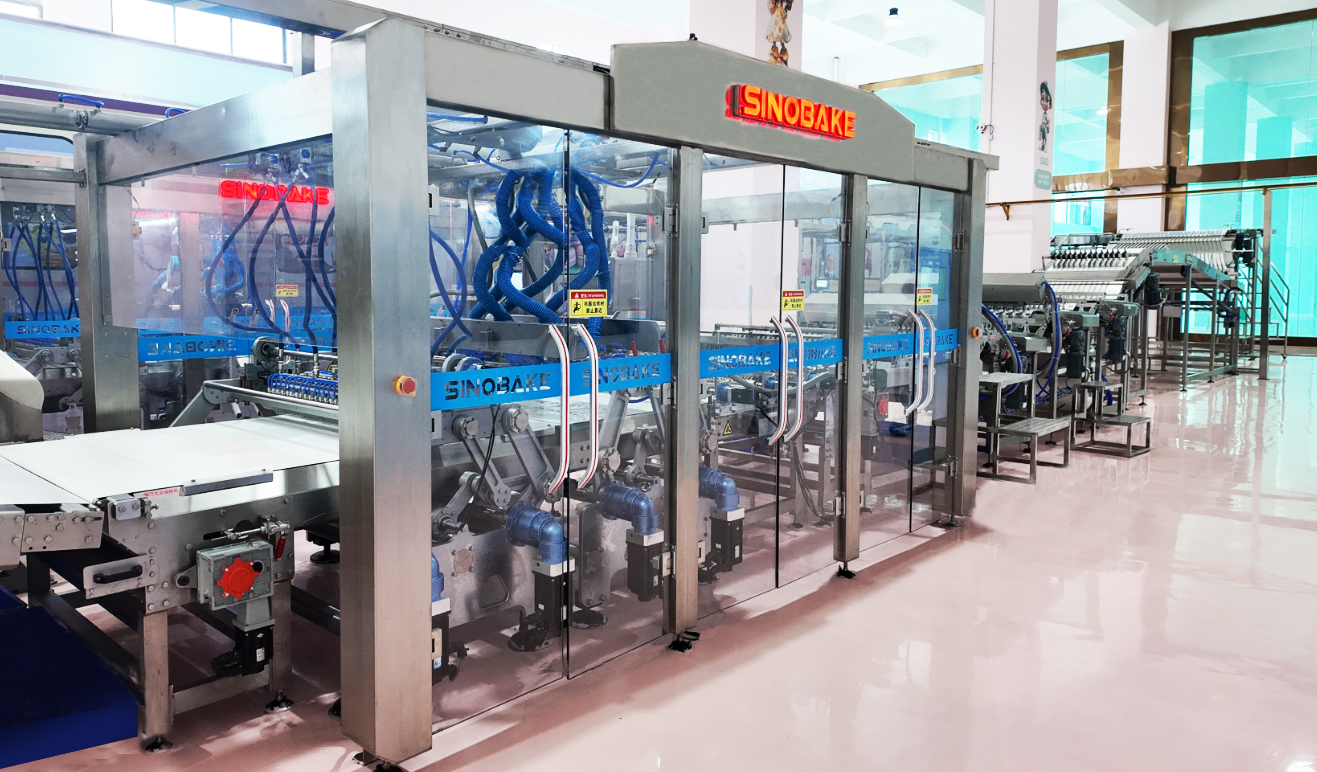

High Quality Biscuit Rotary Moulder Biscuit Production Line

Parameter:

. Diameter of the mold: Ø248, the roller body is made of 45 high-quality carbon steel, the length of the roller body is (1240mm)

2. Rubber roller diameter: Ø255, encapsulation thickness 20mm, rubber material is non-toxic and oil-resistant material, hardness is A60;

3. Working width: (1200mm), overall dimensions:  (1700X2130X1325)

4. The side board is made of Q235 carbon steel, the thickness is 28mm after processing, the surface is plated with hard chrome, and the surface hardness is HRC58-62

5. The conveyor frame board is made of Q235 carbon steel material, the thickness after processing is 15mm, the surface is plated with hard chrome, and the hardness is HRC58-62

6. The pallet uses 304 stainless steel

7. Mould and conveyor belt are separately controlled by independent motors, easy to adjust

8. The pressure between the mold and the rubber roller is adjusted by a motor, and the scraper is manually adjusted by a cam

9. Conveying active roller diameter: Ø215, the surface is covered with rubber, the rubber material is non-toxic and oil-resistant

10. The conveyor belt uses a special belt for rotary moulder

11. The conveyor belt adopts pneumatic tensioning and pneumatic deviation adjustment, and the cylinder adopts Korean famous brand YSC;

12. The enclosure uses 1.5mm304 stainless steel material

13. The surface of roller, transition knife, etc. are plated with hard chrome

14. The main drive adopts gear drive

15. SEW/Siemens for main motor and reducer, frequency conversion speed regulation

16. Mould pressure is detected by displacement sensor, accurate digital display, speed and gap touch screen control

17. Adopt no sanitary dead angle structure design, safe and sanitary

18. Install emergency stop switches and other safety protection devices

19. The circuit layout is neat and beautiful, and the wire trough uses aluminum alloy (when equipped with a production line)

20. Control appliances mainly use French brands: Schneider

21. Bearings use Japanese brand: NSK
