WG1000
SINOBAKE

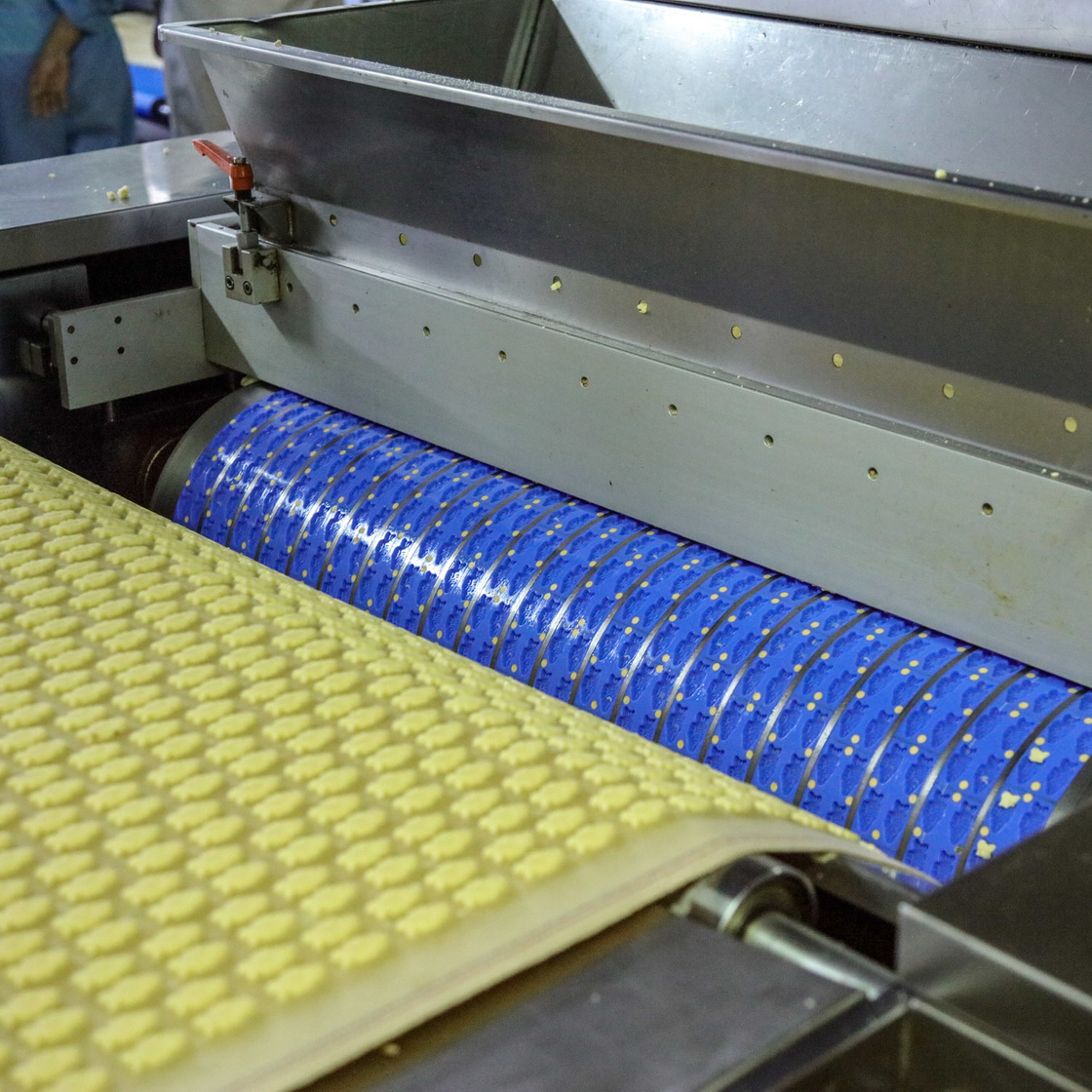

For such biscuits we recommend rotary moulder machine that is suitable for the production of soft biscuit dough, shortbread, and pet biscuits. It is a multifunctional machine that allows for high levels of products output while maintaining perfect weight and outward appearance. During moulding process, the dough is get into forming roller moulds in the form of any shape that can be completed with patterns and company logo.
Parameter:
1. Working width: 1000mm, overall dimensions: 1700X1930X1325
2. The pallet uses 304 stainless steel
3.Mould and conveyor belt are separately controlled by independent motors, easy to adjust
4. The pressure between the mold and the rubber roller is adjusted by a motor, and the scraper is manually adjusted by a cam
5. Conveying active roller diameter: Ø215, the surface is covered with rubber, the rubber material is non-toxic and oil-resistant
6. The conveyor belt uses a special belt for rotary moulder
7. The conveyor belt adopts pneumatic tensioning and pneumatic deviation adjustment, and the cylinder adopts Korean famous brand YSC;
8. The enclosure uses 1.5mm304 stainless steel material
9. The surface of roller, transition knife, etc. are plated with hard chrome
10. The main drive adopts gear drive
11. SEW/Siemens for main motor and reducer, frequency conversion speed regulation
12. Mould pressure is detected by displacement sensor, accurate digital display, speed and gap touch screen control
13. Adopt no sanitary dead angle structure design, safe and sanitary
14. Install emergency stop switches and other safety protection devices
15. The circuit layout is neat and beautiful, and the wire trough uses aluminum alloy (when equipped with a production line)
16. Control appliances mainly use French brands: Schneider. Bearings use Japanese brand: NSK
