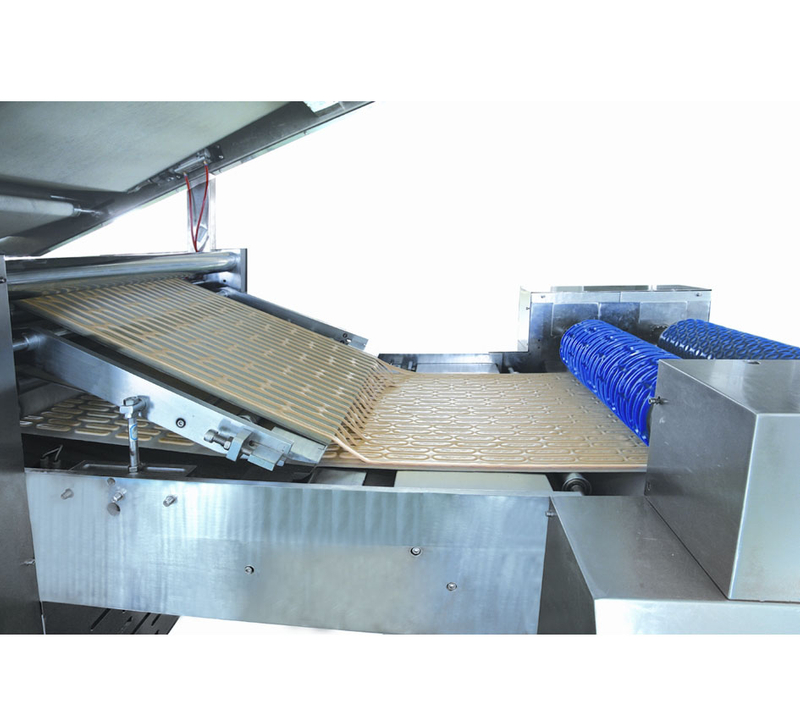

SINOBAKE Separating Machine For Dough Sheet Dough Scrap Recycle System

Designed for scrap recycling when producing hard biscuit, also used for feeding of soft biscuit dough.
  • ZS1500


  • 8438100090

Product Description


1. Recycling method: front recycling or side recycling is optional

2. Working width: 1500mm/200mm

3. Dimensions: according to design

4. The conveyor frame board uses 304 stainless steel with a thickness of 2mm

5. The pallet uses 304 stainless steel

6. Conveying active roller diameter: Ø160, the surface is covered with rubber, the rubber material is non-toxic and oil-resistant

7. The conveyor belt uses European imported PU belt with a thickness of 1.3mm

8. The conveyor belt is manually tensioned and the anti-deflection guide bar is used to prevent deviation

9. The surface of rollers and other surfaces are plated with hard chrome

10. The main drive adopts direct drive

11. SEW/Siemens for motor and reducer, frequency conversion speed regulation

12. Speed touch screen control

13. Adopt no sanitary dead angle structure design, safe and sanitary

14. Install safety protection devices such as emergency stop switches

15. The circuit layout is neat and beautiful, and the wire trough uses aluminum alloy (when equipped with a production line)

16. Control appliances mainly use French brands: Schneider

17. Bearings use Japanese brand: NSK
